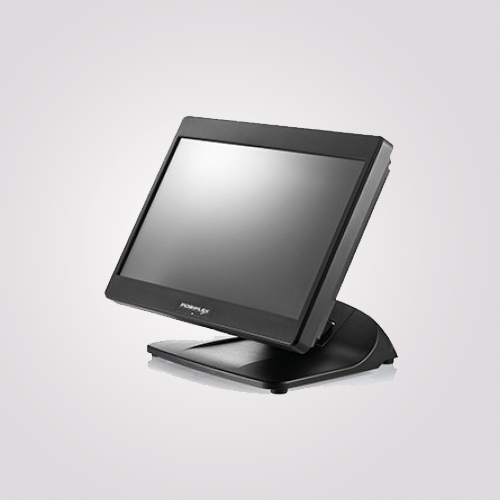

Slim and Flexible
Streamlined design equips with a foldable base; PS-3316E provides users with unmatched flexibility to adjust the screen to a height and angle depending on the application.
Expandable and Neat
Designed to better manage peripheral connectivity by separating a full set of ports into the top of the terminal top and the base, PS-3316E ensures neat, reliable peripheral cabling.
| Specification | PS-3316E |
| Processor | Intel J1900 processor, 2.00GHz/2.42GHz (Burst), 2M cache |
| System Memory | DDR3L 1333MHz SO-DIMM x 1, max. 8GB |
| Storage Device | 1 x SATA + 1 x eMMC connector, SATA SSD default |
| Power Supply | 12V/40W |
| OS Support | Windows 10 IoT/Windows Embedded 8.1 Industry/Windows 7/POSReady 7/Linux per request |
| Display | |
| LCD Display | 15.6″ TFT LCD, Default 1024 x 768, 1366 x 768 max. |
| Touch Function | 5-wire resistive touch |
| Connectivity | |
| LAN Port | 10/100/1000Mb x 1 |
| Serial Port | 4 x DB9, 5V/12V support on all COM ports |
| Parallel Port | 1, via optional conversion cable |
| UPS Port | N/A |
| Standard USB Port | 5 |
| PS/2 Port | 1, via optional conversation cable |
| Display Port | VGA x 1, 12V support for Posiflex monitors |
| CR Port | 1, control 2 CR via optional Y-cable |
| Audio | Buzzer only |
| WIFI | Optional internal mini-PCIe WIFI module with PIFA Antenna |
| Physical Dimension | |
| Dimension (W x D x H in mm) | 372 x 320 x 252.7 |
| Weight (N.W. in Kg) | 4.7 |
| Environment | |
| Operation Condition | 0°C – 40°C, 20%RH – 90%RH (Equipped with HDD) ; 0°C – 50°C, 20%RH – 90%RH (Equipped with SSD) |
| Storage Condition | -20°C – 70°C, 10%RH – 90%RH |
| Options | |
| SA-105 | Side Attachment for PS Series with 3 track MSR |
| SA-205 | Side Attachment for PS Series with iButton |
| SA-305 | Side Attachment for PS Series with support for 3 track MSR, RFID and Finger Print Sensor |
| SA-405 | Side Attachment for PS Series with support for 3 track MSR, 3G dongle and Finger Print Sensor |
| SA-505 | 3-in-1 attachment with MSR (default), RFID & iButtonsupport for 15”/17” XT series & 15”/15.6” PS series |
| LM-6807U/LM-6810U | 7″ 800 x 480 /10” 1024 x 768 rear-mount 2nd display for PS series (USB interface) |
| PD-2609UE | 2 x 20 VFD, rear-mount, USB with Virtual COM support |
| PD-360UE/PD-360R | 2 x 20 LCD, rear-mount, USB with Virtual COM support (PD-360UE)/RS232(PD-360R) |
| PD-6807U | 7″ color LCD graphical line display, rear-mount (USB interface) |
| KP-500 | 40-key dynakey attachmentwith MSR or RFID option for 15”/17” XT series & 15”/15.6” PS series |
