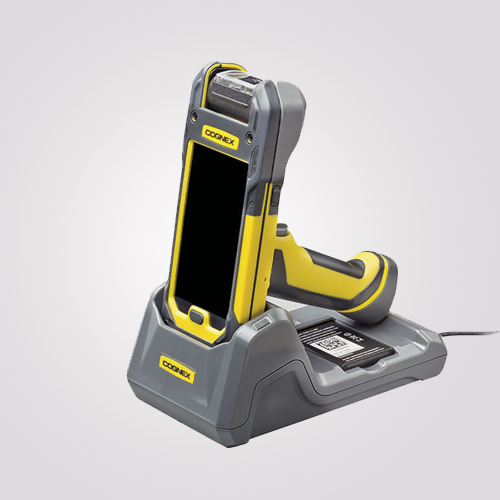

RUGGED: The design of the MX-1502 makes any supported mobile device ready to meet the challenges of the most demanding environments. The IP65 sealed housing withstands the harshest environments and the inductive wireless charging eliminates exposed electrical contacts that can wear out or fail.

MODULAR:The MX platform is also future-proof and accepts a variety of Android® and iOS® smartphones. If your device needs to be repaired or upgraded, simply exchange the top cover kit to adapt the MX-1502 to any supported mobile device. The modular design means your investment is protected and you are always ready for the latest technology.

SMART:MX-1502 mobile terminals are equipped with barcode reading algorithms that read 1-D and 2-D label-based codes and challenging 2-D DPM codes at standard, far and extended ranges. It leverages the latest communication technologies supported by your mobile device including 3G, 4G, 4G LTE Wi-Fi, Bluetooth and more.

Dimensions 208.6 mm x 88.9 mm x 42.1 mm
Weight 510 g (675 g with pistol grip)
Operating Temperature 0 °C to 40 °C (32 °F to 104 °F)
Storage Temperature -40 °C to 60 °C (-40 °F to 140 °F)
Maximum Humidity 95% (non-condensing)
Material Polycarbonate housing with overmold
Imager 1.2 MP global shutter sensor
Aiming Green LED
Status Outputs LED, beeper and vibration
Communications Scan engine communicates to mobile device through USB port Mobile device communicates via Wi-Fi, Bluetooth, Cellular and others based on model
Supported Devices Samsung® Galaxy® S4, S5, S6 and S7, Apple® iPhone® SE,5/5S, 6/6S, 7 and iPod® 5th + 6th Generation
Symbologies 1-D: UPC/EAN/JAN, Codabar, Interleaved 2 of 5, Code 39, Code 128, Code 93, Pharmacode, GS1 DataBar, PDF417, Micro PDF417
2-D: DataMatrix, QR Code, MicroQR Code, DotCode, and postal code
Lighting Integrated LED illumination
Base Station Power Supply Requirements 24 V, 13 W maximum LPS or NEC Class 2 power supply
Battery (brick style) 3.7 V, 3070 mAh Li-Polymer
Battery (pistol grip) 3.7 V, 3100 mAh Li-Ion
Environmental Compliant with RoHS directive 2011/65/EU
Regulatory Electrical EMI/RFI CB Scheme: IEC 60950-1, FCC 47 CFR Part 15 Subpart B,ICES-003, CE, KCC
Data Validation US DoD UID Guidelines, GS-1, ISO15434 and ISO15418
Trigger Left- and right-handed buttons, pistol grip or
