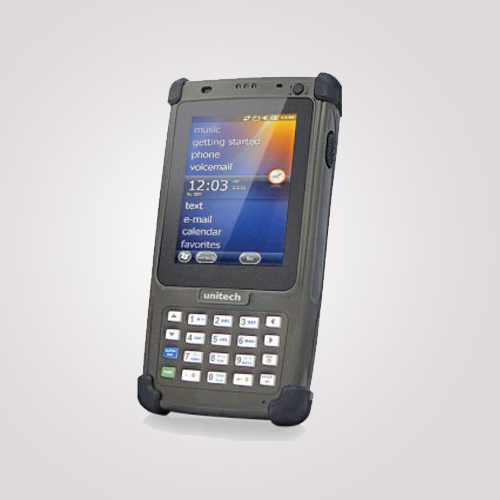

unitech-pa820

Request a Quote

Download Brochure

Category:
  • Windows Embedded Handheld 6.5 operating system
  • Ultra-Rugged Construction: IP66 rated, 1.8M drop and MIL-STD-810G certified
  • Compact design: only 452g
  • Large 3.5 -inch color TFT multi-touch sunlight-readable display
  • Built in 1D scanner and 5 Megapixel camera
  • Latest Bluetooth v2.1, GPS, and WiFi 802.11 a/b/g/n
  • Wide Temperature Range: Operating: -20oC~ +60oC/ Storage: -30oC~ +70oC
System Features
CPU TI AM3715 1GHz
Memory 512MB Mobile DDR RAM; 512MB NAND Flash
OS Windows Embedded Handheld 6.5 Professional and Classic
Languages support English, Simp. Chinese, Traditional Chinese, Japanese,Spanish, German, French
Display
Capacitive touch pannel
3.5″ Color 480 x 640 sunlight readable LCD
Camera / Photos / Video
5.0 megapixel autofocus camera with Flash
support SW MPEG decoder / encode
Symbologies
1D Barcode Engine
UPC-A/E, EAN-8/13, Codabar, Code 39, Code 39 full ASCI, Code 93,Code
32, Interleaved & Std. 2 of 5, EAN 128, Code 11, Delta, MSI/Plessey,
Code 128, Toshiba
Audio
1W Speaker
3.5mm headset jack
Receiver
Keypad
20 Numeric and functionable keys, 2 Scanner keys, 1 Power key
Regulatory Approvals
CE, FCC, BSMI, VCCI, CCC, RoHS compliance
Expansion Slot
microSD microSD slot with SDHC Support (up to 32GB)
Communication
USB USB 2.0 Client and Host
WLAN IIEEE 802.11 a/b/g/n
Bluetooth Bluetooth 2.1 + EDR
WWAN 3.75G Radio
UMTS / HSPA+, 3GPP release 6 / 7
USA:
Dual Band UMTS/HSPA+ (850, 1900 MHz),
Dual-Band GSM (850/1900 MHz)
EU:
Dual Band UMTS/HSPA+ (900/2100 MHz)
Power Source
Main Battery 8.14 Watt-Hour 3.7V @2200 mAh
14.8 Watt- Hour 3.7V @4000 mAh
Backup Battery Li-Coin battery Supports 2 hours backup
Enclosure
Weight 452g with Battery
Dimension 163.8×87.4×36.7 (mm)
Environmental
Operating temperature -4°F to 140°F (-20°C to 60°C)
Storage temperature -22°F to 158°F (-30°C to 70°C)
Charging Temperature 32°F to 104°F (0°C to 40°C)
Relative Humidity 5% ~ 95% (non-condensing)
Drop Specification 1.8 meter MIL-STD 810G,Method 516.6,Procedure IV
Sealing IP66
Vibration and Shock test MIL-STD-810G, Method 514.6, Procedure I
MIL-STD-810G,Method 514.6,Procedure II,Category 5
Software
Microsoft Visual Studio 2005/2008
Mobile SIP(VoIP)
Auto Installer
Notification
LEDs, Vibrator
Mobile Device Management Software and Service
MoboLink®
Device Management;Application Management;Event Triggers
Accessories
Single Slot USB Client/Host/Ethernet Cradle
Handstrap
2200 and 4000 mAH standard Battery
USB Communication with holder Cable
Power adaptor with universal plugs
