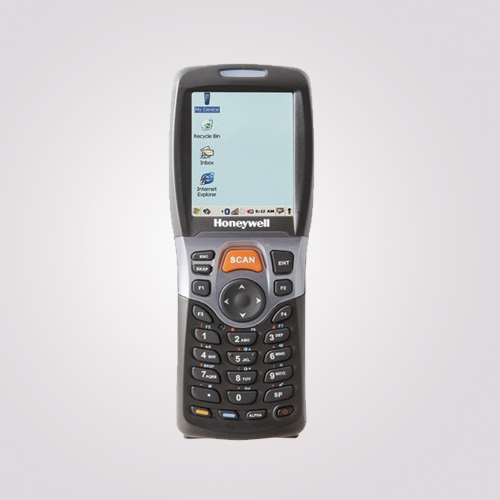

Honeywell Scanpal 5100

Ergonomic Design: Ultra-lightweight device provides instinctive data entry and comfortable single-handed use in a slim form factor
Larger color screen: 2.4” color QVGA screen enhances user experience for graphical applications; touch screen available as an option
Flexible Communication: Supports batch mode and optional integration of 802.11b/g technology for real-time access to critical information
Microsoft® Windows CE 5.0 CORE with PXA300 Processor: Class-leading microprocessor with a powerful, familiar, and easy-to-use platform
Versatile Data Collection: Offers both linear and 2D decoding options to meet customer needs and requirements

Mechanical/Environmental
Dimensions	157 x 57 x 41mm / 6.18 x 2.24 x 1.61 in.
Weight	< 231g including Standard battery pack
Operating Temperature	-10°C to +50°C
Storage Temperature	-20 º to 70ºC
Humidity	5% to 95%, non-condensing
Drop	4ft (1.2m)
Environmental Sealing	IP 54
ESD	± 8 kV direct discharge
System Architecture
Processor	PXA300 624MHz
OS	Microsoft® Windows CE 5.0 Core
Memory	64MB RAM x 128MB Flash
Flash Memory	128MB Flash
Display	2.4”(240×320 pixels) QVGA * Touch screen option
Keypad	28-key Numeric (Alpha/ shift /function/navigation key)
Audio	Built -in Speaker
I/O Ports	Full speed USB 1.1 from cradle (or I/O cable); RS232 (115 Kbps) from cradle
Development Environment	SDK
Application Software	Basic application softwares and demos
Storage Expansion	Micro SD Card with capacity up to 32G
Battery	Li-lon 2200mAh – STD & 3300mAh – EXT
Expected Hours of Operation	8+ hours (with scan and continuously transmitting)*
Expected Charge Time	Less than 4 hours* -(0-40ºC)
Imager/Scanner	Honeywell Laser / Imager
Decode Capabilities	Reads standard 1D and 2D symbologies
Warranty	1 year factory warranty
Wireless Connectivity
WLAN	Dual Mode 802.11 b/g (11 Mbps/54 Mbps)
WLAN Security	WEP, WPA and WPA2
WPAN	Bluetooth® Class II (10 m) v2.0 Enhanced Data Rate (EDR)
